Aryq:

The new height is better!
The text seems a little better too -- not sure if you did anything with that or it may be that depending on the radius (i printed it at 80% size) it just happens to kern better or worse.

The new center design is better.  If it's easy to do it might be nice to try one where that center is actually quite a bit higher up, to elevate cody a half inch or so.. Might be worth a try..

Also on further thought, I think maybe having the bottom flat with nothing on it might be better for when we use this as a base for the cody figurine and award, because it would allow me to write something personal on the underside with an oil paint pen.  I think that would be preferable to a design, and make the printing easier.

mouser,
The nice thing is everything you suggest (mostly) is really easy. Comment out the cody, change the height of the column, etc.

I haven't tried it but I think OpenSCAD can import an stl - you may be able to do this in one print.

I changed the font in the latest version, from Arial Black to Liberation Mono (DC.com) and Liberation Sans (other text).

I normally go through and fix indenting and comment things before I do this but here's the source - I included the font needed for the edge; fonts for the top will need to be on your system (OpenSCAD has a font list under the help menu to be sure).

When you're using OpenSCAD it shows a "preview" but to print it you need to do a "render" (F6 or a toolbar button) which is pretty slow with the fonts. Then you can export an STL.

Helpful tip for OpenSCAD, if you put a "#" at the beginning of a line or object then it's highlighted in red, so you can see what you're editing.

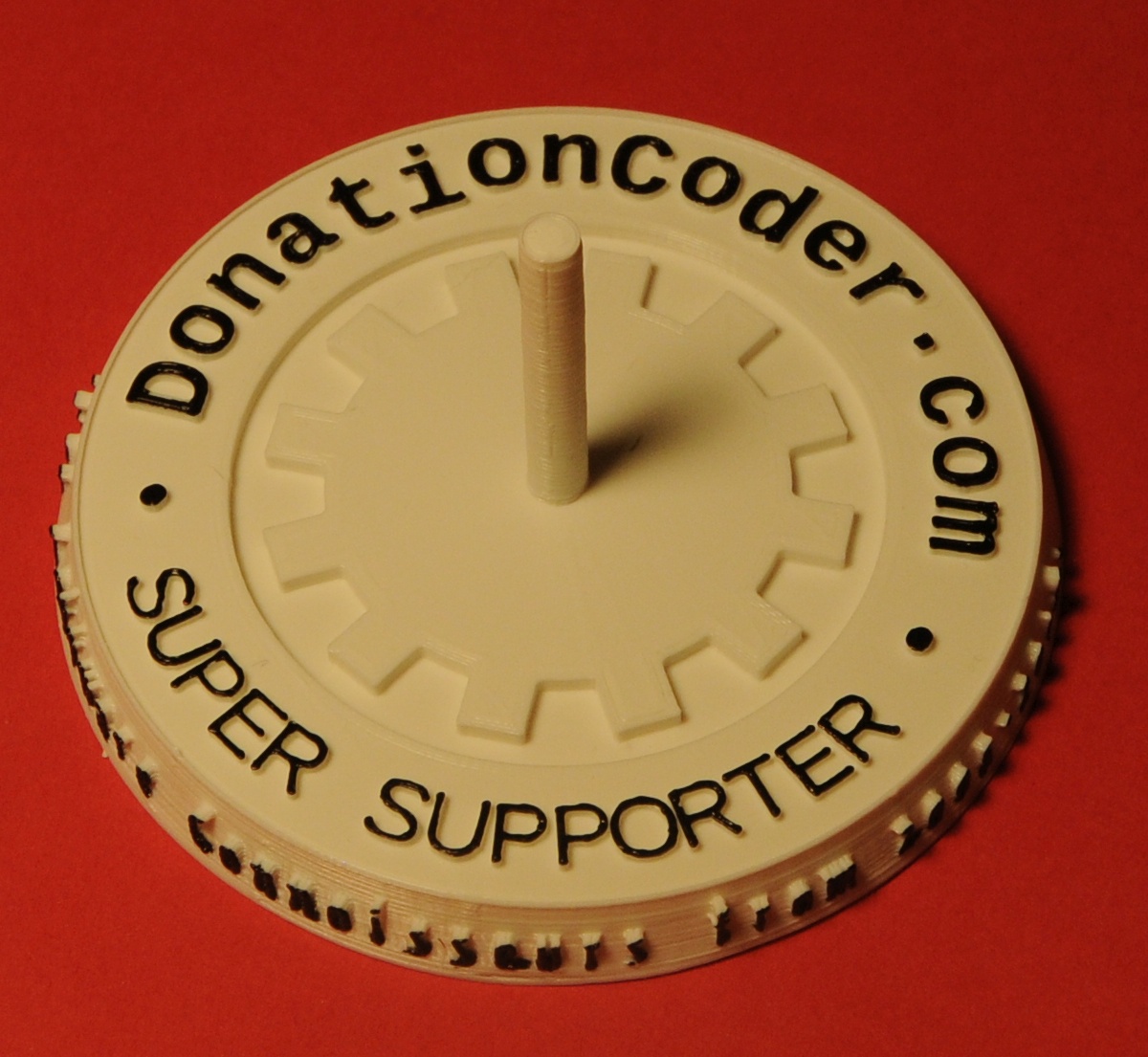

I think I will need your help making the "rod".

You can do it! Look at the bottom of the file; I've commented out a cylinder "//simple platform for Cody".

translate([0,0,2]){cylinder (r=20,h=3,center=true);}

First change r and h - note that the height expands from the middle so it sticks out the bottom.

translate([0,0,2]){cylinder (r=2,h=30,center=true);}

Then change the "z" value in the translate function to slide it upward. You can move it up by half the height, plus half the thickness of the cylinder. Overlap is OK.

translate([0,0,17]){cylinder (r=2,h=30,center=true);}

Here, use this one instead. I got rid of all the "center=true" so things grow "up" instead of "out". Should make dimensions easier to play with.

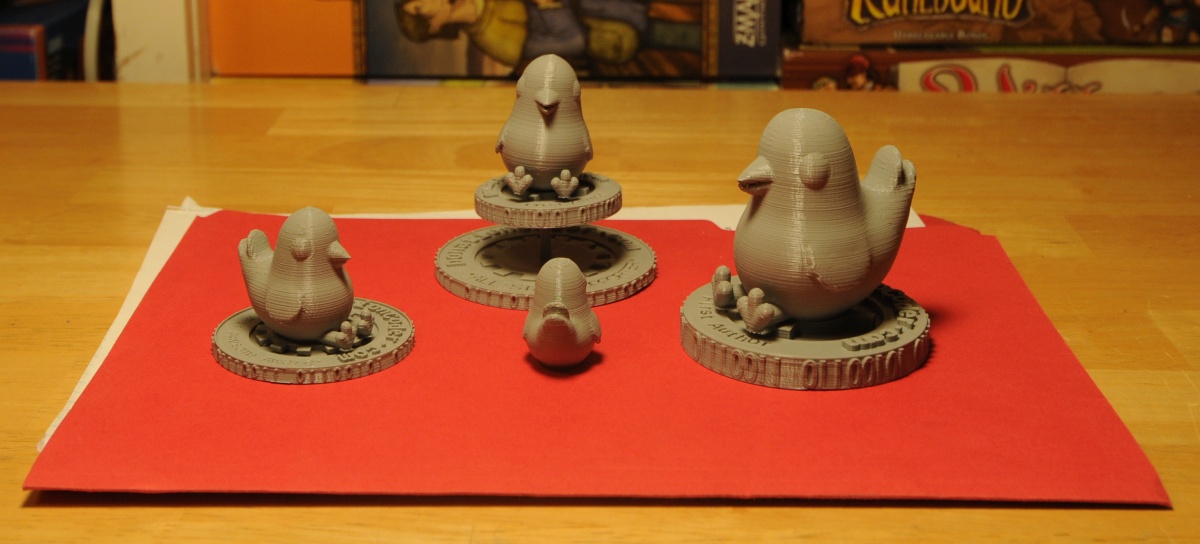

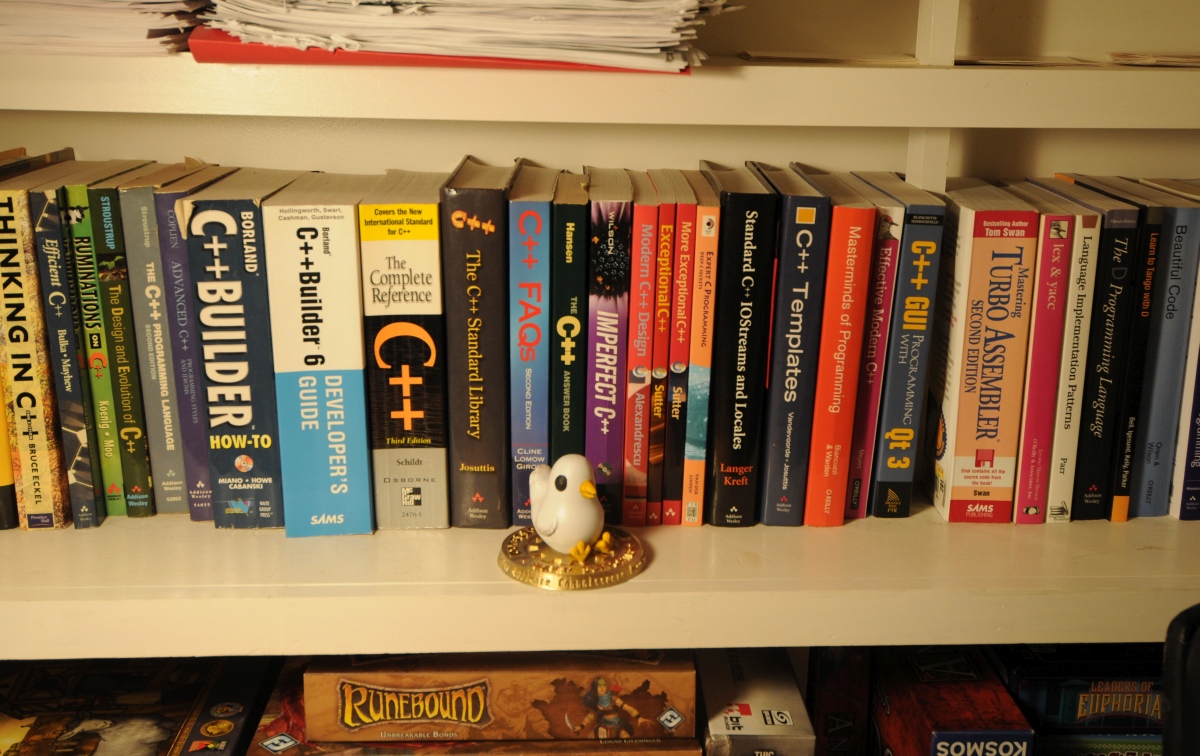

Heralding a new arrival:

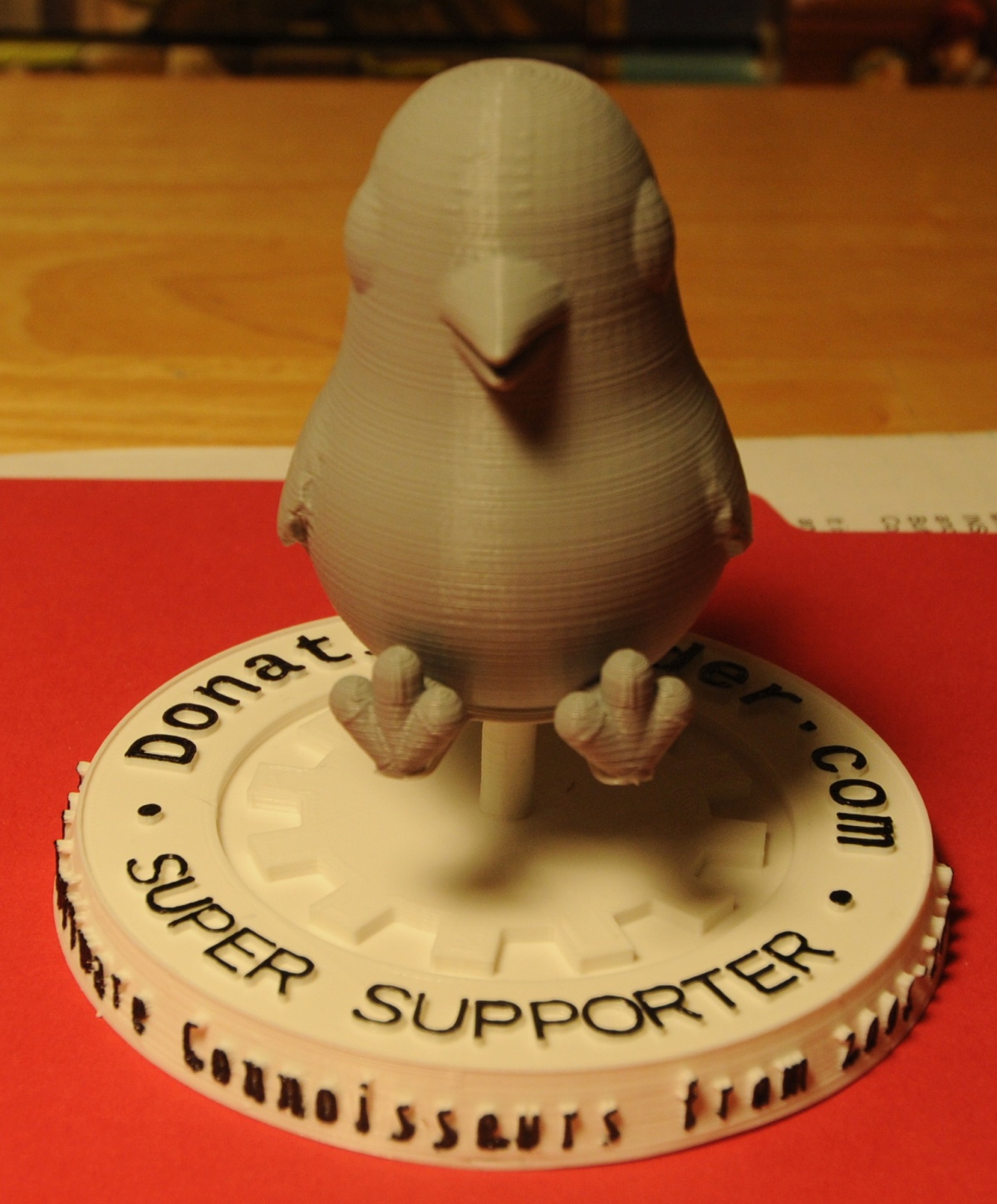

I have to say that the idea of a rod and perching cody above it did not work as well as I had hoped -- he looked a little strange sitting on a pole so I had to put him on a second tier.  Probably more trouble than it's worth, as the look of him just sitting on the coin base still seems best to me.

And then we have to figure out what awards to make and who gets them.. It won't cost much to print or ship these, but will take quite a few hours to print each one.  If they are to be painted, much more work involved.
We could offer them as alternatives to NANY mugs.. But maybe their best use would be as special awards for long time dc forum members who have made thousands of posts, or forum moderators.  Or big shot donors
They can be customized with username, date of joining, etc, etc..

I will soon try painting one of the baby codys.

You should try acetone-fuming with one of the codys. It smooths out all the ridges and makes it much easier to paint. Lots of info online; I did it with a widemouth mason jar on my heated bed and a little lower-able platform made of stiff electrical wire.

Edit: this is for ABS. good link here: http://blog.reprap.org/2013/02/vapor-treating-abs-rp-parts.html

You should try acetone-fuming

I've seen those dedicated alcohol smoothing machines (they require special fillament).

Nudone did such a great job with the baby cody model, I still can't get over it.

+1

Big white coin/pedestal with simple painted letters:

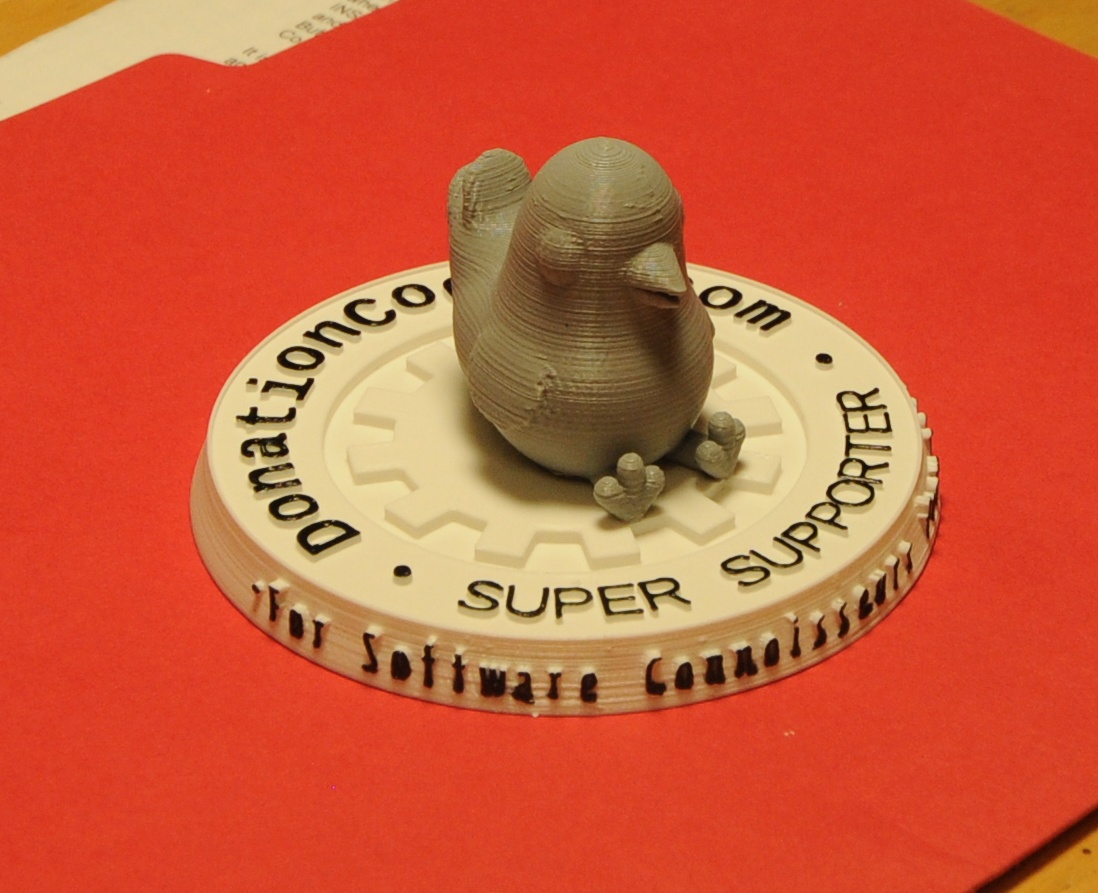

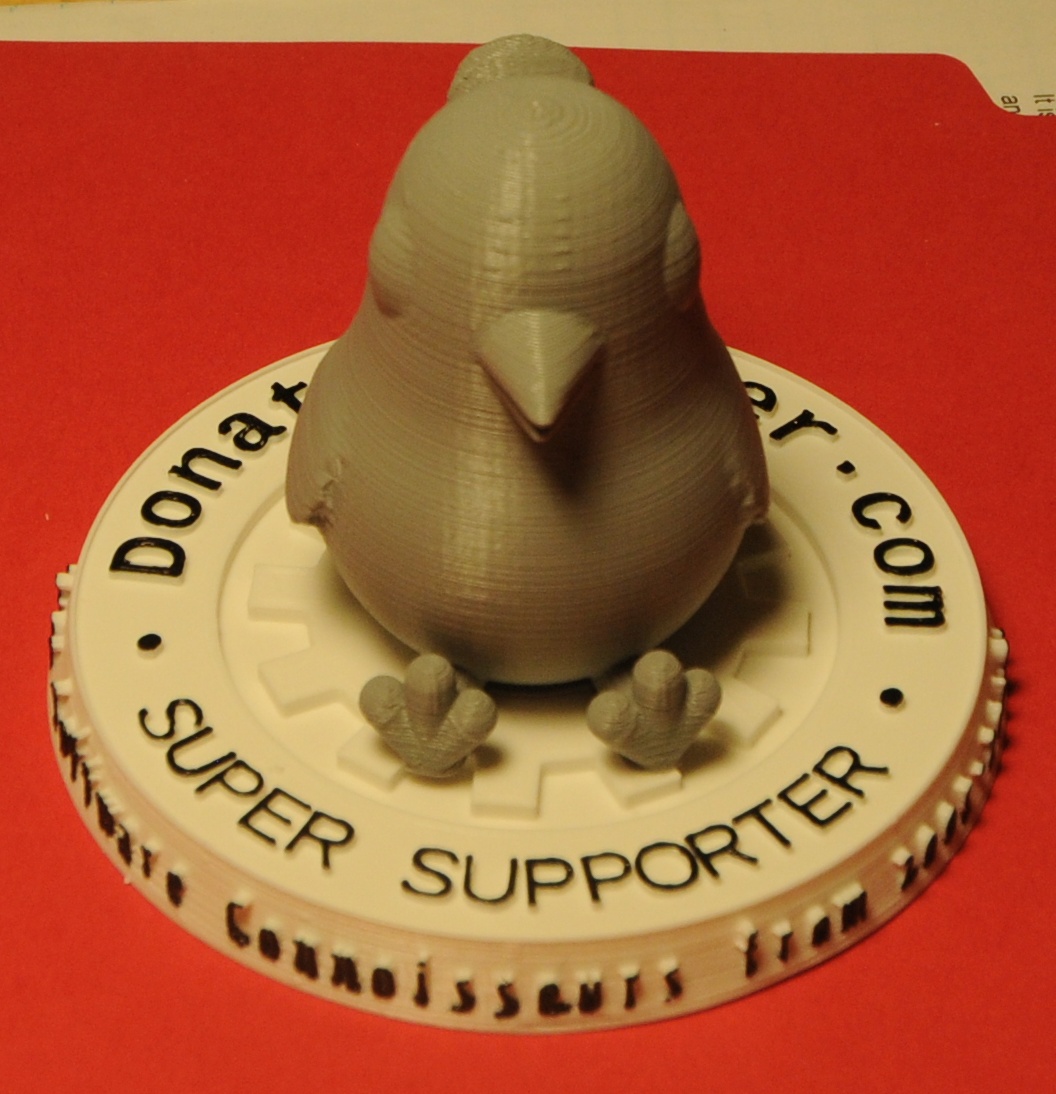

And sitting directly on coin:

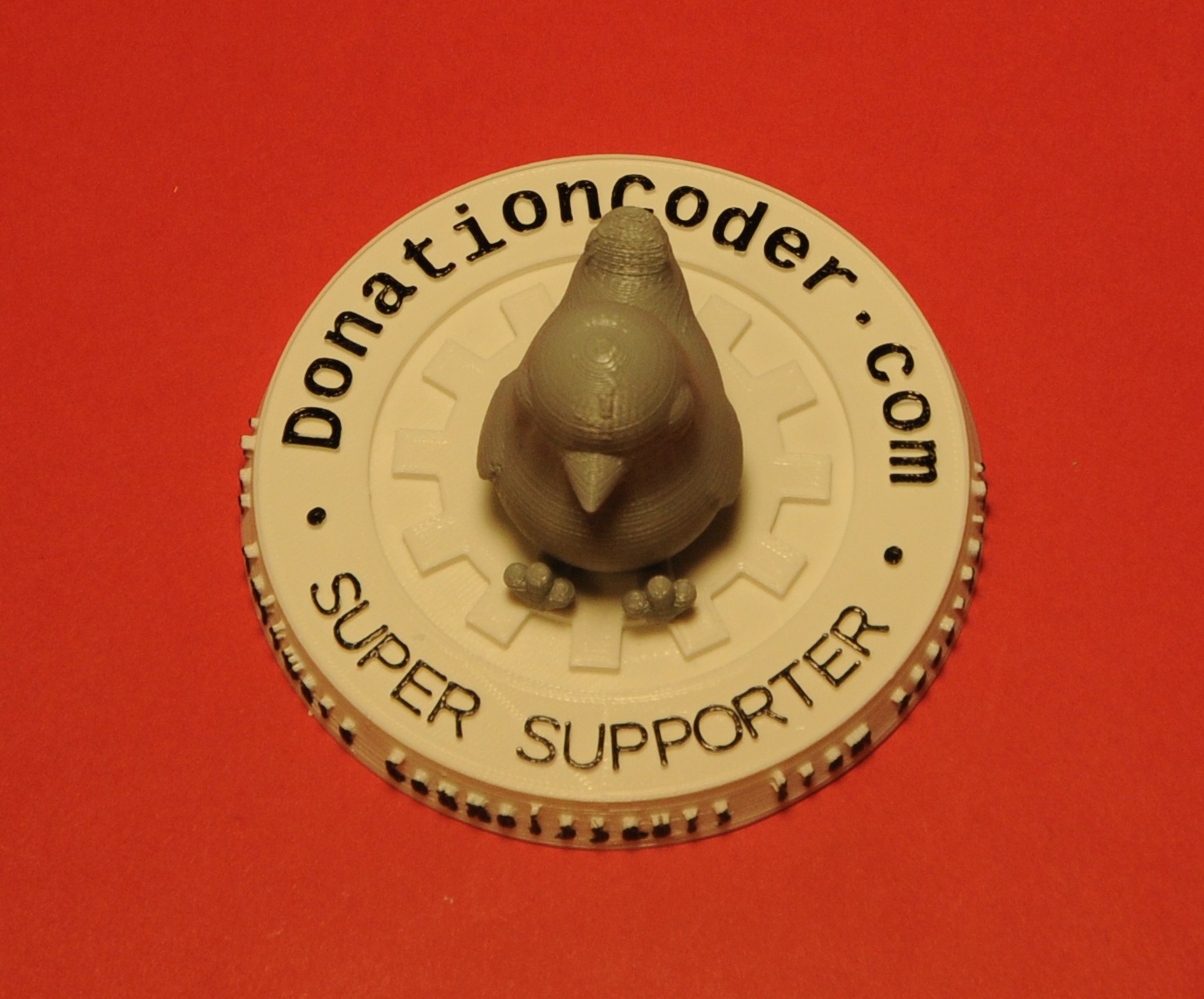

And with a smaller cody:

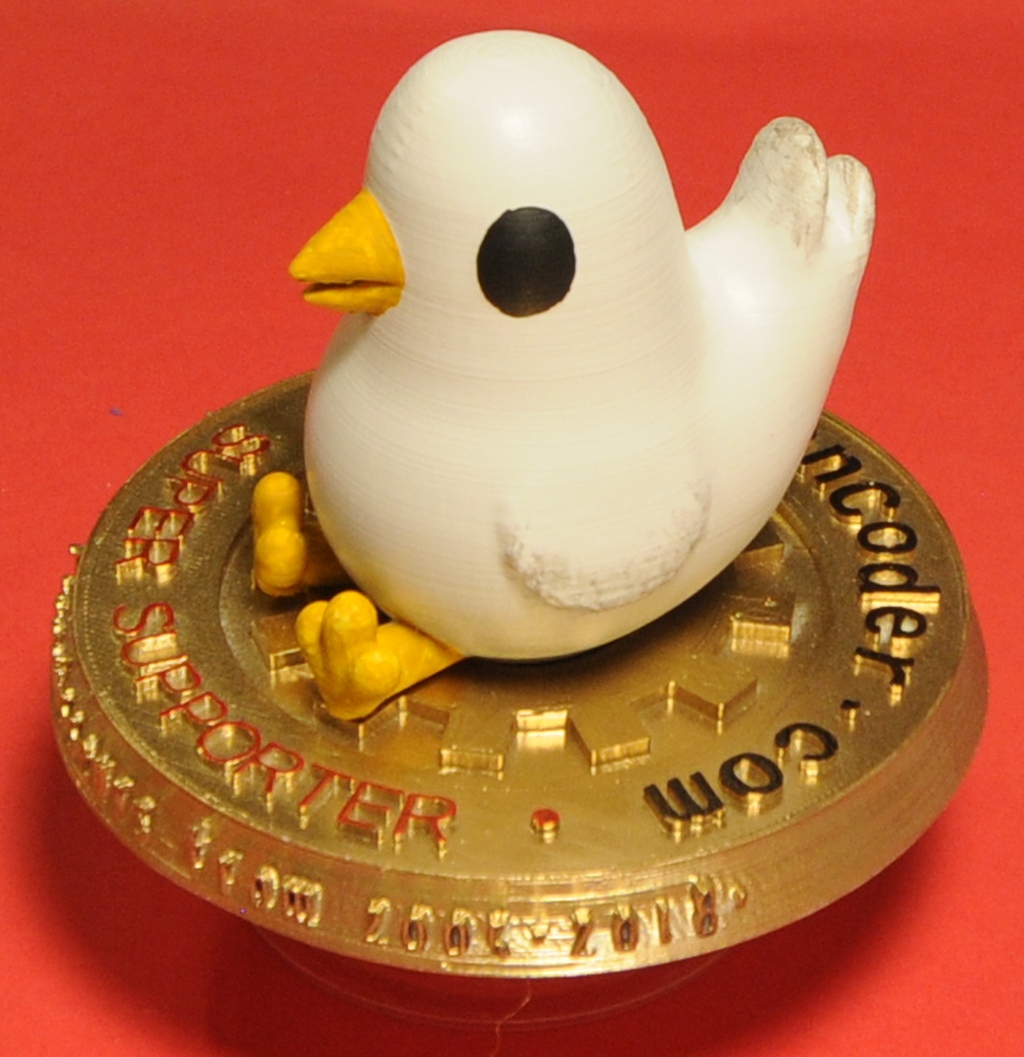

These aren't too laborious to produce.. Some spray paint, oil marker, and hand painting the beak, feet, and eyes.

I'll try some more sizes for cody and the coin...

Text on coin face and around the rim are customizeable.

So, it seems to me I could make a couple dozen of these with custom text and send them out to special folks.

Ditto!

not sure what Stephen is saying, but I *probably* agree with him...
Definitely agree with Deozaan though :Thumbsup:
