DIY Vacuum tubes

[Edvard]

I could watch this for days...

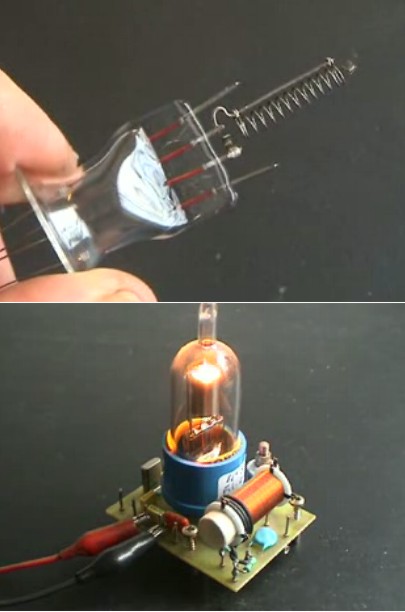

Check out this absolutely mesmerizing (17 minute!) video of a French amateur radio operator who rolls his own vacuum tube triodes! I love the ease with which he performs these rather high-end skills (like glass forming), the gestural flourishes (like it's hand magic), and the Zelig-esque soundtrack.

http://blog.makezine.com/archive/2008/01/make_your_own_vacuum_tube.html

Not only does he make his own vacuum tubes, it looks like much of his equipment is hand-made as well.
Mesmerizing.
The win... you can smell it.
from Make via Electronics Lab who got it from http://paillard.claude.free.fr/

[Ehtyar]

Holy cow Edvard, that was epic. Thanks

Ehtyar.

[mouser]

mesmerizing was the perfect word to describe it.. great.

[40hz]

I could watch this for days...

Je suis d'accord! So much so that I downloaded the HQ video.

Epic catch indeed. Thanks for sharing it.

[Edvard]

moi aussi mon ami, moi aussi... I'm going to show it to my son when we have a night of free time.
It's only 17 minutes, but as with all informational media, he's got a ton of questions afterwards which I'm all too glad to answer until he runs out of them.
Ah, the joys of home-schooling.

[Gothi[c]]

Awesome. If you find more stuff like that, please post!

[Daleus]

There is some quite interesting stuff available through MAKE magazine. I've often thought of getting a subscription.

I saw this about a year ago and it really struck my heart.  My grandfather who passed away a few years ago, was a Amateur Radio Operator (VE3OJ) and used to tell me stories of how in his early years, he and his radio friends who were on the cutting edge of it all, rolled their own capacitors by hand using paper and wax to hold it all together.

When I was wee, he still had a lot of radio gear that ran on vacuum tubes.  I used to thrill over the tubes lighting up and lending a beautiful glow to the corner of the basement that was his "radio shack". He even had a few of those units that used a modulated glowing green display on the rounded end of the tube to help you tune in a signal.. These type of tubes have an actual name, which completely escapes me now. Depending on how close you were to the signal, a pair of opposing green wedges, on a phosphorescent disc in the end of the tube (like a primitive crt), would expand or contract.

This is a video I think he would have been fascinated with, and I'm glad to have been fascinated in his stead.

[40hz]

He even had a few of those units that used a modulated glowing green display on the rounded end of the tube to help you tune in a signal.. These type of tubes have an actual name, which completely escapes me now. Depending on how close you were to the signal, a pair of opposing green wedges, on a phosphorescent disc in the end of the tube (like a primitive crt), would expand or contract.

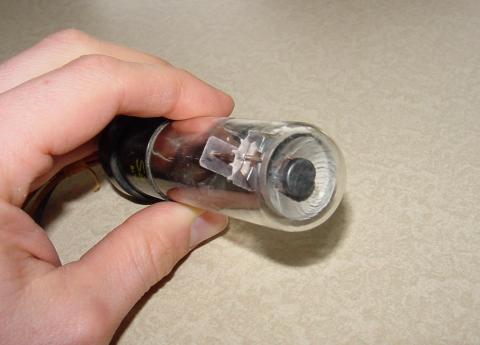

Ahh...that awesome little bit of electronic bling from back in my father's day! I have one of those on a surplus WWII receiver he and I rebuilt when I was a kid. They're called Cat-Eye (or sometimes Magic Eye) tubes. I say "are called" rather than "were called" because they're still around today. Unfortunately, they're mostly used for eye-candy on very expensive boutique radio receivers.

So who 'woulda thunk' retro-tech could be so cutting edge?

[attach]

[Edvard]

Far out! So that's the green thingamabobby on my capacitor tester!

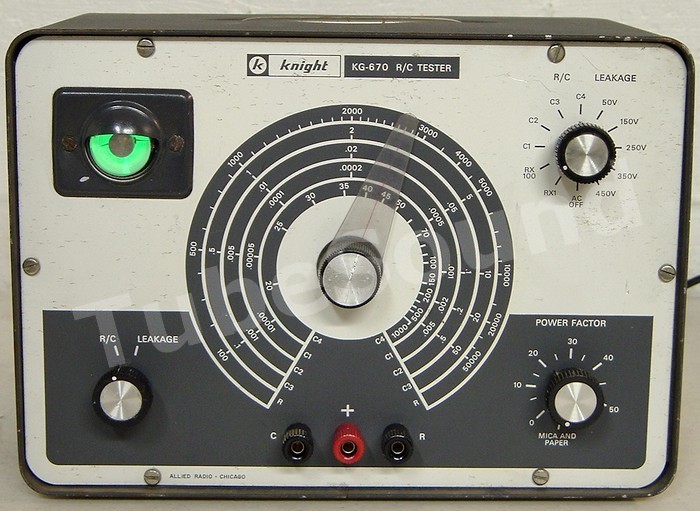

(I have a Knight KG-670 and still don't know how to use it... for shame!)

[40hz]

(I have a Knight KG-670 and still don't know how to use it... for shame!)

Manuals are available for most of that old gear if you don't have your own copy. There's a dozen or so sites that will sell you one. Most cost between $8 and $25 depending. Shop around since prices will vary widely even though it's for the same manual.

You can also probably score a copy for free if you have full 'alt' newsgroup access.

Check alt.binaries.e-book.technical and its variants (alt.binaries.ebook.technical, etc.). Post a request if you don't see what you're looking for and somebody will usually put it up within a few days.

[Daleus]

SWeet 40hz!

Magic Eye was what I was looking for - I believe that was an actual commercial name.
